TOPS-MATE INT'L CORP.

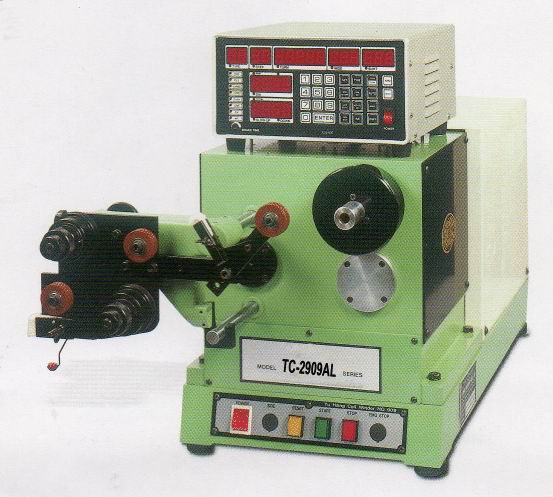

Programmable Auto Coil Winding Machine (Front Spindle)

TC-2909AL TC-2909AR

¡@

2909AL with DC-1/2 HP main motor, 2909AR with DC-1 HP:

For regular coils and transformers with winding turns less than 4800ts.

¡@

MODEL TC-2909AL TC-2909AR
Control System TC-210S controller TC-210S controller
No. of Spindle 1 spindle 1 spindle
Wire Tensioner 1 set 1 set
Traverse Width  10 ~ 100 m/m
Spindle Speed(RPM)
(H): 4800 RPM(Max)
(M): 3600 RPM(Max)
Wire Gauge
0.03~0.60m/m
0.60~2.00m/m
Wire Gauge
0.03~0.60m/m
0.60~2.00m/m
Winding Diameter 10 ~ 100 m/m 10 ~ 100 m/m
Winding Pitch 0.03 m/m ~ 2.00 m/m 0.03 m/m ~ 2.00 m/m
Memory Capacity 999 Step
Winding Width 100.00 m/m (Max)
Power Source 220 VAC ±10% / 50 Hz(2.5A),110 VAC±10% / 60Hz(5A),single phase.
Main Motor    DC-1/2 or 1 HP  DC permanent magnet motor, single phase.
Traverse Motor 0.9 Deg. stepping motor,step angle 0.9 Deg.
Dimension
(L) (W) (H)
85×46×50cm
(L) (W) (H)
95×46×50cm
Wooden Case
(L) (W) (H)
100×55×65cm
(L) (W) (H)
110×55×65m
Net/Gross Weight    55 / 80 Kgs    63 / 88 Kgs

¡@
