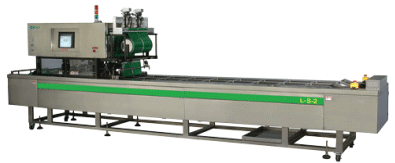

Model : L-S-2 Continuous Fully Automatic Filling & Container Sealing Machine



Applications: Various Fruit jelly, Tofu soft, Soy bean curd, Tofu pudding, Vegetarian Gelatin, Grass jelly, Pudding, snacks & jelly food ..., etc. All Products sealed in cup and tray. Features: The consistent with automatic work, saves the man-power, economical. The reservation backfill, Auto cup dispenser and for the box unit expansion mechanism, may depend on the service to change the requirement. The entire series aircraft type electrically controlled unit picks the CE standard manufacture and the design, each item uses after CE or product of the UL authentication.Except transmissions and outside the seal heat source and so on motor and electric heating, the control units are all picks the DC24V low-pressure control, prevented the personnel touches the leakage risk to control the tube by mistake. Uses OMRON or the PROFACE computer man-machine holds controls the screen and MITSUBISHI may formula controller (PLC). Transmission unit: Uses motor of product after the CE authentication, the bottom die driving chain uses the Japanese system stainless steel; The continuous-type revolution, on the stamping die synchronization gearing, the backfill does not have the vibration, the service life of a machine is long. The computer touches controls the screen, demonstrated completely the entire machine production and the operation condition (various units manual/automatic operation, unit do move sector hypothesis, each parameter hypothesis, PLC’s I/O immediate control, a production quantity raid of hypothesis, temperature hypothesis immediate monitoring and low temperature alarm, unusual news and personal history…) ; Facilitates the operation. The thin film electric automatic tracking adjusts the seal position, grasps each product outward appearance quality precisely. Provides 10 groups of production pattern parameter to memorize, the elastic design, favors the split-second selection different product of series production. The seal electric heating unit waterproofing guards against the leakage and the short circuit, the high security and guarantees the seal quality and the electric heating life. Entire machine stainless steel tube welding, high rigid tenacious organism, safety and health, no dead space for cleaning and without residual risk. The continuous-type backfill technology, the backfill process conveyor belt constant speed revolution does not interrupt, guarantees the commodity backfill packing quality. The consistent automatic work, saves the man-power, economical.

Specifications:

Model	Sealing Line	Production Quantity Per Min	Production process	Remark
L-DFS-4a	4	20~40 Cycle/Min	Automatic container dispenser →Filling →Auto coding →1st heat sealing →Sealing position adjusting →2nd heat sealing →Film trimming →Auto discharge.	Power supply ： AC 220/380V 3Φ,50/60 Hz Sealing type：heating pressure Power Consumption：8KW Motors：1HP(750W) Air compression：4-8kg/cm² Machine dimension：made by order
L-DFS-2	2	20~40 Cycle/Min
L-FS-1	1	30~40 Cycle/Min
L-FS-2	2	30~40 Cycle/Min
L-DFS-2a	2	20~40 Cycle/Min
L-DFSC-5	5	20~40 Cycle/Min

(All models are provided by customize.) Options Auto Cup Dispenser system, Ultraviolet Germicidal Unit, After Ultraviolet Germicidal Delivery Unit,Thermal Carbon Band Type Printer、Product washing Unit、CIP Auto washing system Unit、 Air clean room Level system L-SERIES Other MODEL: L-DFS-2  Continuous Fully Automatic Filling & Container Sealing Machine L-FS-1    Continuous Automatic Filling & Container Sealing Machine L-FS-2    Continuous Automatic Filling & Container Sealing Machine L-DFS-2a Continuous Fully Automatic Filling & Container Sealing Machine L-DFS-4a Continuous Fully Automatic Filling & Container Sealing Machine L-DFSC-5  Clean-Room Level Continuous Fully Automatic Filling & Container Sealing Machine
