The newest design type

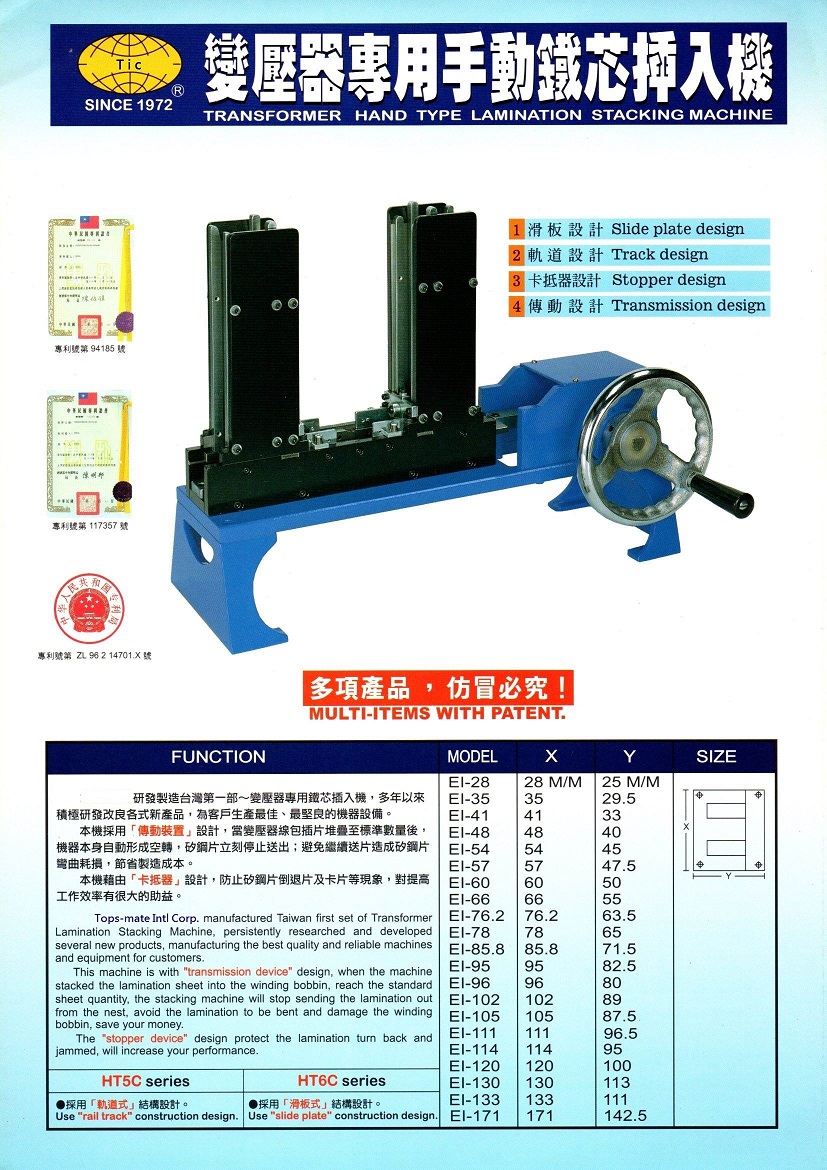

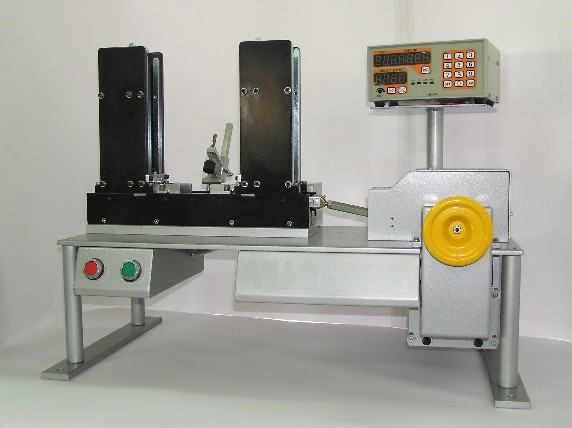

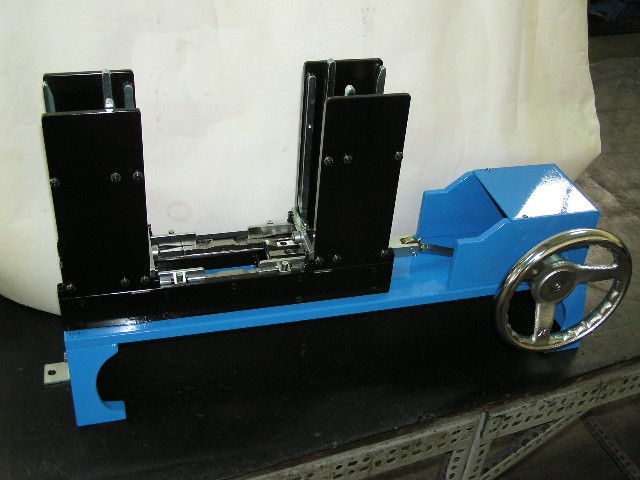

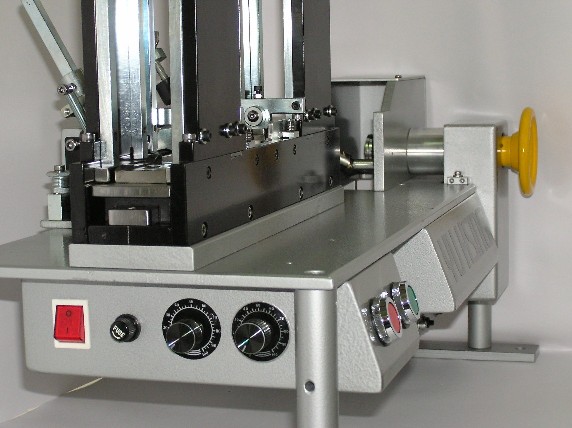

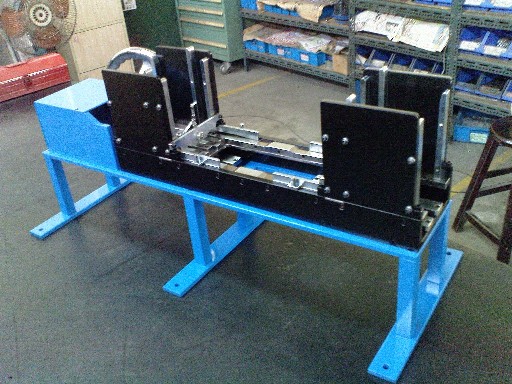

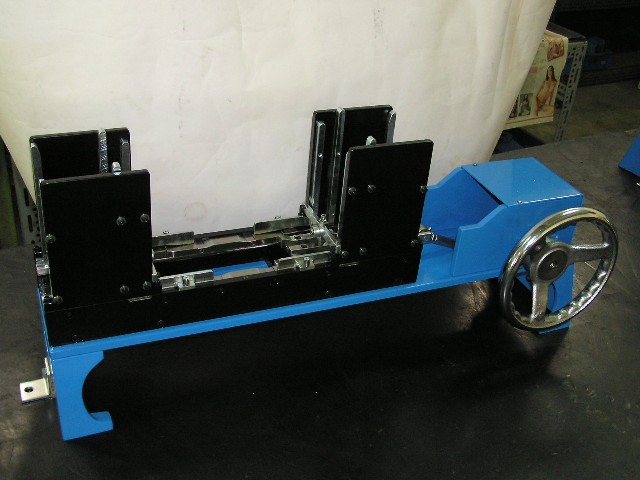

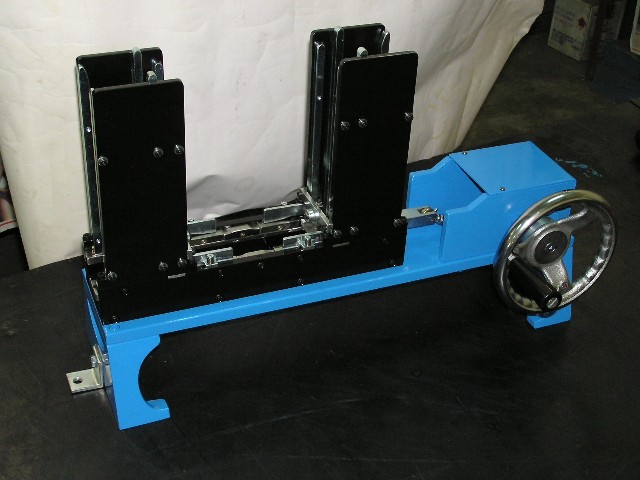

HT5C series EI lamination stacking machine

HT5C = The 5^TH generation of newest model, that do not need to use the hammer to strike THE LAST ONE pce OF E CORE or I CORE to finish the unit. This is new own design with pattern registration.

IT IS DEVELOPED A SPECiAL DESIGN with  SLIDE SPEED FASTER / HIGH PRECISION / LESS LOSS / GOOD STABILITY IN SENDING LAMINATIONS.

STAINLESS STEEL BALL TRACK / EASY OPERATION / HIGH EFFICIENCY / HIGH RELIABILITY

This HT5C machine is with "New Transmission device", when the machine stacked the lamination sheet into the winding bobbin, reach the standard sheet quantity, the stacking machine will stop sending the lamination out from the nest, avoid the lamination to be bent and damage the winding bobbin, save the lamination sheet and save the time and money.

The "stopper device" design protect the lamination turn back and jammed, will increase the performance.

The HT5C is new designs with patent. We are the sole manufactuer in the world.

We manufactured Taiwan first set of Transformer Lamination Stacking Machine

since 1972, persistently researched and developed serveral new products, manufacturing the best quality and reliable machines and equipments for customers.

HT5C with new designs :

-1. Track Design

-2. Slide Plate Design

-3. Stopper Design

-4. Transmissiion Device

-5. Different steel material with special coating, which with the 3 times of special hardness treatment with mirror polish by chromium plating on the machine body and parts, which to make the machine with longer product life and high performance after years.

The HT2C old model is now designed with cost down and with lower price,so H2C will not be high quality as HT5C model.

- 1. More product informations & photoes will be sent after receipt of your inquiry.

http://www.eimachine.com for the video.
