Ultrasonic Welding Machine

Features :

   1. This system provide a practical and economical
       of welding for joining  thermoplastic assemblies.

   2. Excellent design with high performance.

   3. Ultrasonic welding minimizes risks to both the environment           and employee safety by removing potentially risk
        materials from this stage of manufacturing.

  4. One of the best methods of joining plastic is Ultrasonic
      welding, Which with low operation cost of rapid production and
      not required extra adhesives material.

¡@

Specification:

Model Output Power Frequency Up/Down Control Stock(m/m)

Welding Time Control

Weight

(kg)

Dimension

(H*D*W)mm
TC-300 300W 28KHz Manual 2 180*150*210
TC-1500 1,500W 20KHz Motor Drive 75mm 0.01~9.9 sec 115 1,100*400*720
TC-2200 2,200W 15KHz Motor Drive 75mm 0.01~9.9 sec 120 1,100*400*720
TC-2600 2,600W 15KHz Motor Drive 100mm 0.01~9.9 sec 120 1,100*400*720
TC-3200 3,200W 15KHz Motor Drive 100mm 0.01~9.9 sec 160 1,200*650*950
TC-4200 4,200W 15KHz Motor Drive 100mm 0.01~9.9 sec 215 1,200*680*950
TC-5600 5,600W 15KHz Motor Drive 150mm 0.01~9.9 sec 310 1,500*800*950

Welding condition in different material:

ABS ACETAL ACRYLICS CELLULOSICS CYCOLOY-800 CYCOVIN KYDEX NORYL NYLON PC PE PP PS POLYSULFONE PVC SAN POLYSTER XT-POL YMER
ABS perfect - perfect - perfect OK OK - - OK - - - - - OK - OK
ACETAL - perfect - - - - - - - - - - - - - OK - OK
ACRYLICS perfect - perfect - OK OK OK - - OK - - - - - - - -
CELLULOSICS - - - perfect - - - - - - - - - - - OK - OK
CYCOLOY-800 perfect - OK - perfect OK OK - - perfect - - - - OK - - OK
CYCOVIN OK - OK - OK perfect OK - - - - - - - OK - - OK
KYDEX OK - OK - OK OK perfect - - - - - - - - OK - -
NORYL - - - - - - - perfect - - - - perfect - - - - -
NYLON - - - - - - - - perfect - - - - - - - - -
PC OK - OK - perfect - - - - perfect - - - OK - - - -
PE - - - - - - - - - - perfect - - - - - - -
PP - - - - - - - - - - - perfect - - - - - -
PS - - - - - - - perfect - - - - perfect - - OK - OK
POLYSULFONE - - - - - - - - - OK - - - perfect - - - -
PVC - - - - - OK OK - - - - - - - perfect - - -
SAN OK - OK - OK - - OK - - - - OK - - perfect - OK
POLYESTER - - - - - - - - - - - - - - - - perfect -
XT-POL YMER OK - OK - OK OK OK - - - - - OK - - OK - perfect

Application :

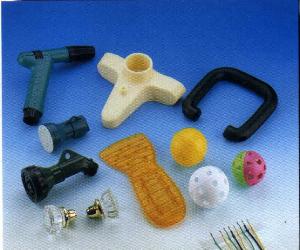

1. Toys:  toy gun, water gun, stationery, phone...etc.
2. Electrical Industry: electronic clock, keyboard, fan, battery, cassette case.
3. Automobile Industry: head light, tail light, brake light, lunch box, rearview, oil filter.
4. Commodities: key ring, thermos-bottle, thermos cup, food container.
5. Stationery: pencil case, PP file, staple, ink bottle, pen stand.
6. Other: Christmas decoration ornament, hair decoration ornament, surgery mask.

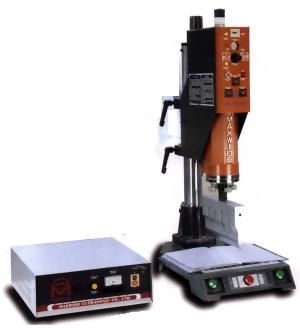

     Ultrasonic Welding Machine enlarged photo
