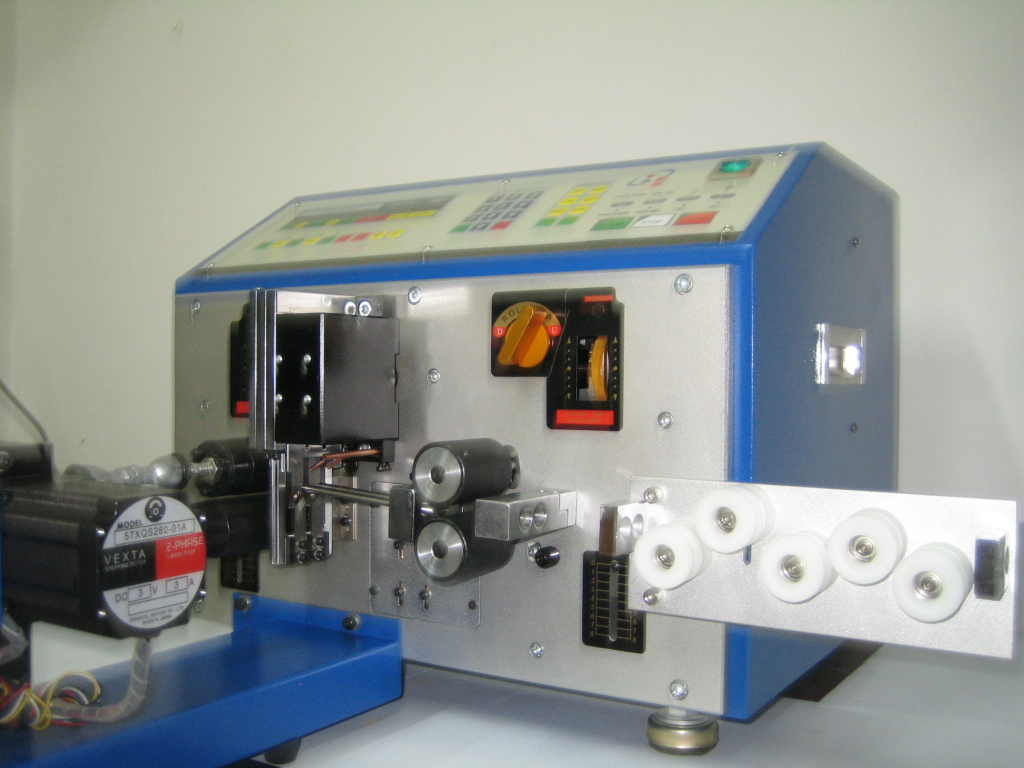

Fully-Automatic Wire Cutting/Stripping/Twister Machine Model: TC- 220+T

Professional MACHINE Designer since 1985 - The main parts with higher level quality for overseas buyer purchasing.  Wire cutting machine are used to cut various type of wire and flexble tubing to specific lengths. They may be computer-controlled and can be programmed to cut wire. Our machine are designed automatic or semi-automatic that provide precise cutting/stripping/twisting.

Our quality and reliable performance has been bring with good reputation from the worldwide markets, the feedback repeated-orders are coming very often. We are using the Japanese designed parts and Japanese construction design, our design with easy operation/high quality of steel parts with hardness treatment......., all these to make our machine with high quality and long product life of the machine operation without defect. There are several different manufacturers offer the different quality products in the int'l markets, it is very important to purchase from the reliable suppliers for importers.

FEATURES:
This machine adoptable to VSF, IV, KV, Teflon, coaxial
cable & ETC. Full Automatic cutting, stripping, half-stripping.
middle stripping and twisting, this machine also adoptable
for diversified sizes wires.

This machine meet the requirements of modern electronic features
such as light, short, thin, small and high precision.

even a difficult processing wire 1mm to 50mm it can be overcame.
for example, the length is 1mm both ends strip 0.3mm

can be made, even an insulation wire can be stripped to a
length of 99mm.


1.（Short wire）


  2.  Front (Rear) stripping

 3.  Front (Rear) Half-stripping


4.Tri-section stripping
　

1.  Front twist

2.  Rear twist

3. Both ends same direction twist

4. Both ends different direction twist

  Production PCS/per Hr.  (Both end with 3mm twisting for 220+T)

            Setting Condition F1-9 F2-9 F3-9

     SPECIFICATIONS

The more photoes and videoes will be sent by e-mail.
